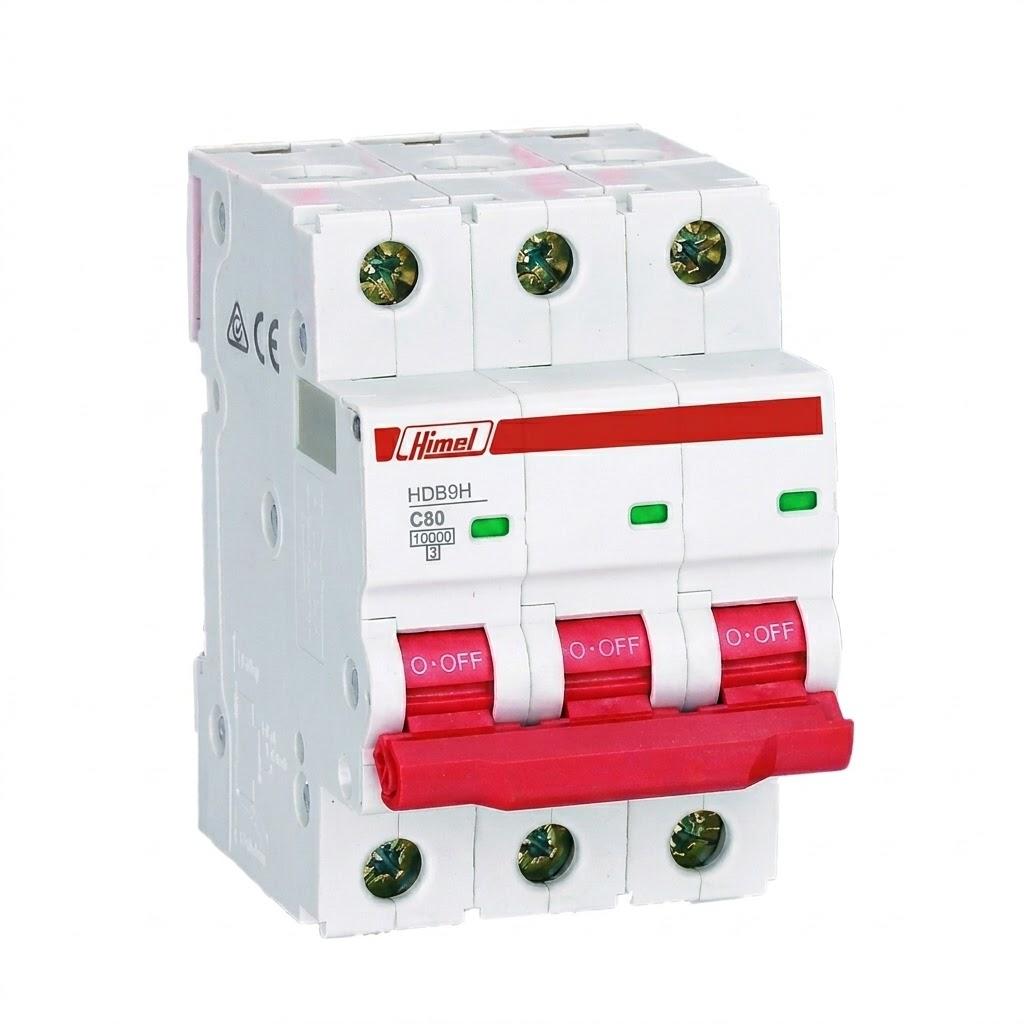

HIMEL HDB3W125H3C80 Miniature Circuit Breaker (MCB) 3 Pole 80A 10kA Type C
The HIMEL HDB3W125H3C80 Miniature Circuit Breaker (MCB) is engineered to provide reliable protection against overloads and short circuits in low-voltage electrical systems. Designed with a 3 Pole (3P) configuration, 80A rated current, and a 10kA breaking capacity, it delivers dependable performance for commercial and industrial power distribution applications.
Manufactured as part of the HDB3W-125 Series, this circuit breaker features Type C thermal-magnetic protection, operates at 400V AC 50/60Hz, and complies with the IEC 60947-2 international standard. Its compact DIN rail mounting design ensures quick installation while providing long mechanical and electrical service life.
HIMEL HDB3W125H3C80 Miniature Circuit Breaker Key Features
- 3 Pole (3P) Miniature Circuit Breaker
- 80A Rated Current
- 10kA Breaking Capacity
- Type C Tripping Curve
- 400V AC 50/60Hz Rated Voltage
- Thermal-Magnetic Trip Technology
- Overload Protection
- Short-Circuit Protection
- 35mm DIN Rail Mounting
- IEC 60947-2 Certified
- IP20 Protection Rating
- Suitable for Isolation Applications
HIMEL HDB3W125H3C80 Miniature Circuit Breaker Applications
- Industrial Distribution Panels
- Commercial Electrical Installations
- Machine Control Panels
- Motor Protection Circuits
- Power Distribution Systems
- Electrical Switchboards
- Industrial Automation Panels
- Low Voltage Electrical Networks

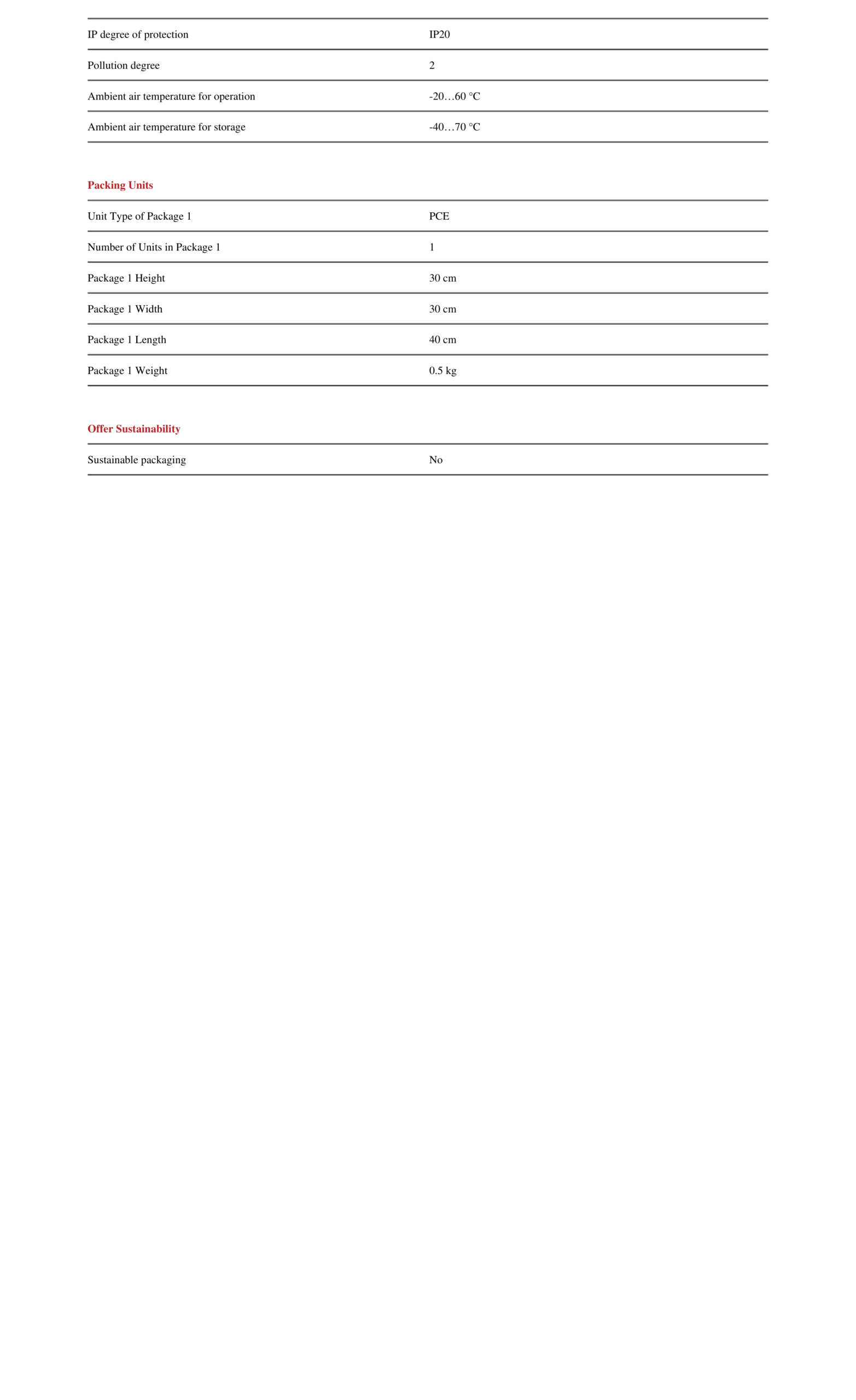

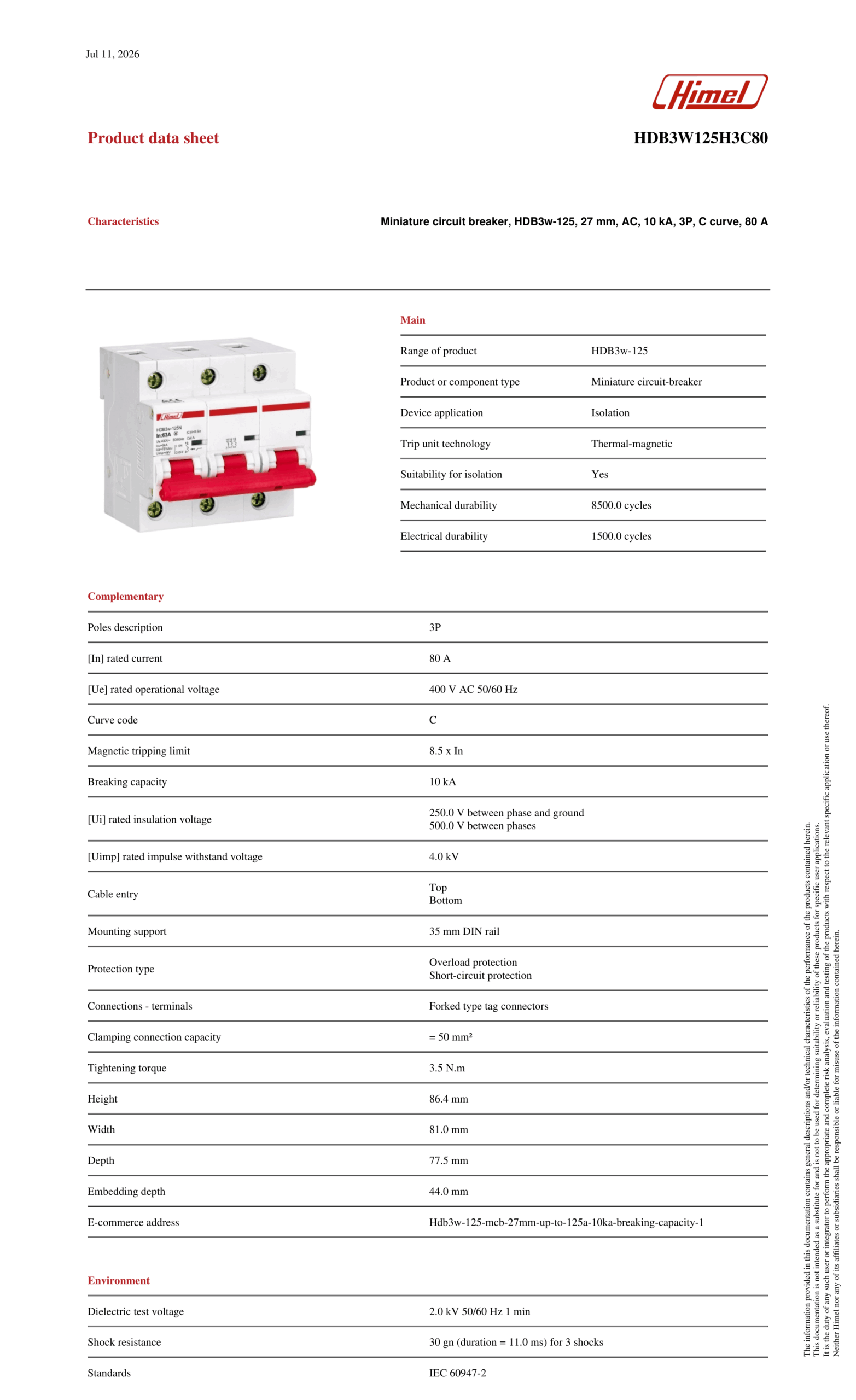

HIMEL HDB3W125H3C80 Miniature Circuit Breaker Technical Specifications
| Brand | HIMEL |
| Series | HDB3W-125 |
| Model | HDB3W125H3C80 |
| Product Type | Miniature Circuit Breaker (MCB) |
| Pole Configuration | 3 Pole (3P) |
| Rated Current | 80A |
| Rated Voltage | 400V AC 50/60Hz |
| Breaking Capacity | 10kA |
| Tripping Curve | Type C |
| Trip Technology | Thermal-Magnetic |
| Mounting | 35mm DIN Rail |
| Protection Rating | IP20 |
| Mechanical Life | 8,500 Cycles |
| Electrical Life | 1,500 Cycles |
| Standard | IEC 60947-2 |
HIMEL HDB3W125H3C80 Miniature Circuit Breaker FAQ
What is the HIMEL HDB3W125H3C80 used for?
It protects electrical circuits from overloads and short circuits in industrial and commercial electrical installations.
What does the Type C tripping curve mean?
Type C breakers are suitable for circuits with moderate inrush currents, including motors, lighting systems, and power distribution equipment.
Where can this circuit breaker be installed?
It is designed for installation in distribution boards, switchboards, and industrial control panels using a standard 35mm DIN rail.
Does this breaker comply with international standards?
Yes. The HDB3W125H3C80 complies with IEC 60947-2 and is suitable for professional low-voltage electrical protection.
For complete technical specifications, visit the HIMEL HDB3W125H3C80 Official Product Page .
