HIMEL Miniature Circuit Breaker (MCB) 1P 32A 6kA Type C – HDB3WN1C32

Description

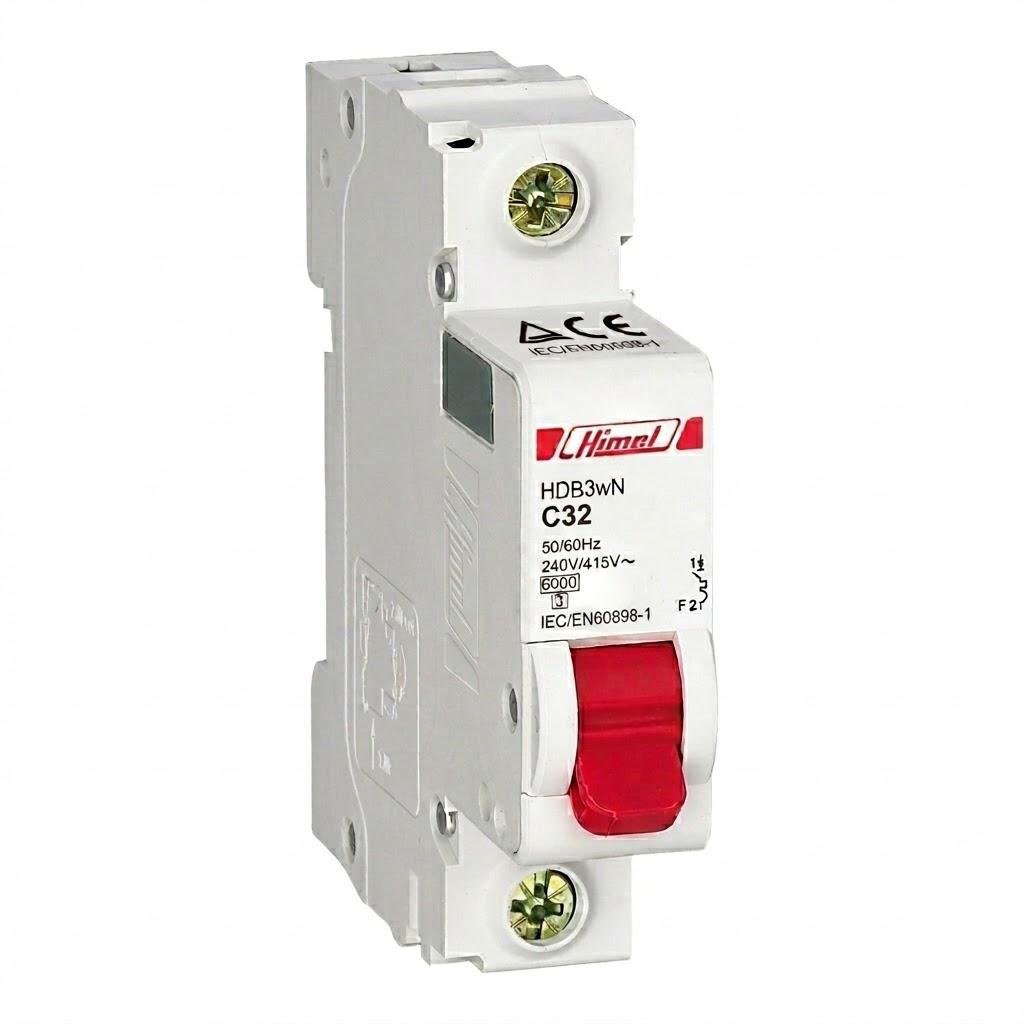

HIMEL HDB3WN1C32 Miniature Circuit Breaker (MCB) 1P 32A 6kA Type C

The HIMEL HDB3WN1C32 Miniature Circuit Breaker (MCB) is designed to provide dependable protection against overloads and short circuits in low-voltage electrical systems. Featuring a 1 Pole (1P) configuration, a 32A rated current, and a 6kA breaking capacity, it ensures safe and reliable circuit protection for residential, commercial, and industrial applications. Equipped with a Type C tripping curve, thermal-magnetic trip technology, and a compact DIN rail mounting design, the HDB3WN1C32 offers long-lasting performance while complying with the EN/IEC 60898-1 international standard.

HIMEL HDB3WN1C32 Miniature Circuit Breaker (MCB) 1P 32A 6kA Type C Key Features

• 1 Pole (1P) Miniature Circuit Breaker (MCB)
• 32A Rated Current
• 6kA Breaking Capacity
• Type C Tripping Curve
• 240V AC 50/60Hz Rated Voltage
• Thermal-Magnetic Trip Technology
• Overload Protection
• Short Circuit Protection
• 35 mm DIN Rail Mounting
• IP20 Protection Rating
• Mechanical Life: 25,000 Cycles
• Electrical Life: 6,000 Cycles
• Certified to EN/IEC 60898-1

HIMEL HDB3WN1C32 Miniature Circuit Breaker (MCB) 1P 32A 6kA Type C Applications

• Residential Distribution Boards
• Commercial Electrical Installations
• Industrial Control Panels
• Lighting Circuits
• Socket Outlet Protection
• Power Distribution Systems
• Electrical Maintenance Projects
• Low Voltage Protection Systems

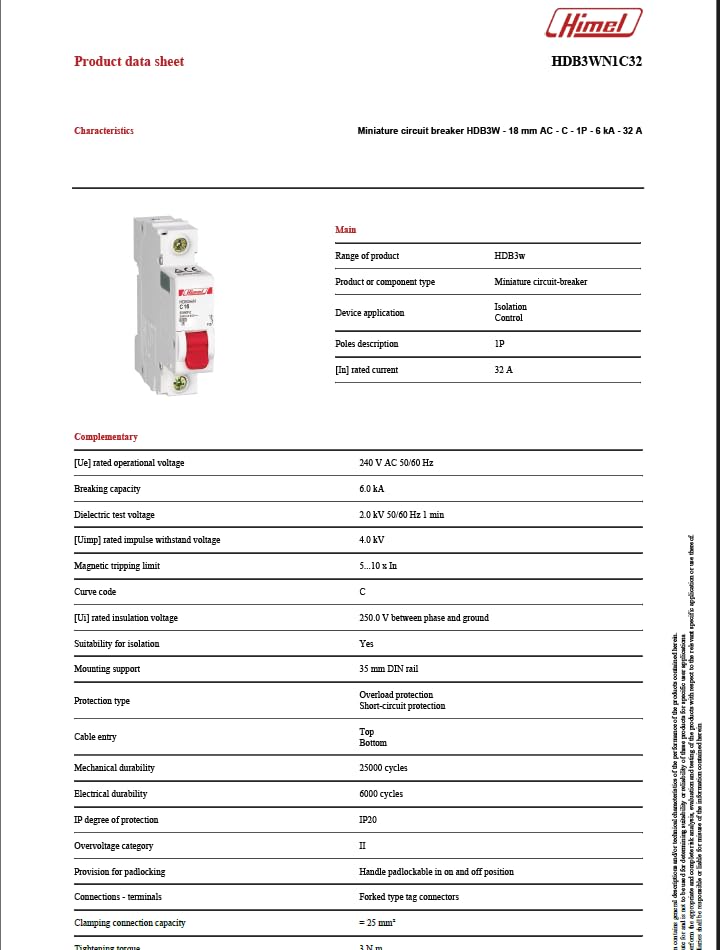

HIMEL HDB3WN1C32 Miniature Circuit Breaker (MCB) 1P 32A 6kA Type C Technical Specifications

Brand	HIMEL
Series	HDB3W
Model	HDB3WN1C32
Product Type	Miniature Circuit Breaker (MCB)
Pole Configuration	1 Pole (1P)
Rated Current	32A
Rated Voltage	240V AC 50/60Hz
Breaking Capacity	6kA
Tripping Curve	Type C
Frequency	50/60Hz
Trip Technology	Thermal-Magnetic
Mounting	35 mm DIN Rail
Protection Rating	IP20
Mechanical Durability	25,000 Cycles
Electrical Durability	6,000 Cycles
Standard	EN/IEC 60898-1
Certifications	CE, CB, TÜV

HIMEL HDB3WN1C32 Miniature Circuit Breaker (MCB) 1P 32A 6kA Type C FAQ

What is the HDB3WN1C32 used for? It protects electrical circuits against overloads and short circuits in residential, commercial, and industrial electrical installations. What does the Type C tripping curve mean? Type C breakers are suitable for circuits with moderate inrush currents such as lighting systems, socket outlets, and small motors. How is the breaker installed? The breaker is designed for quick installation on a standard 35 mm DIN rail inside electrical distribution boards and control panels. Does it comply with international standards? Yes. The HDB3WN1C32 complies with EN/IEC 60898-1 and is certified by CE, CB, and TÜV. For complete technical specifications, visit the HIMEL HDB3WN1C32 Official Product Page .
