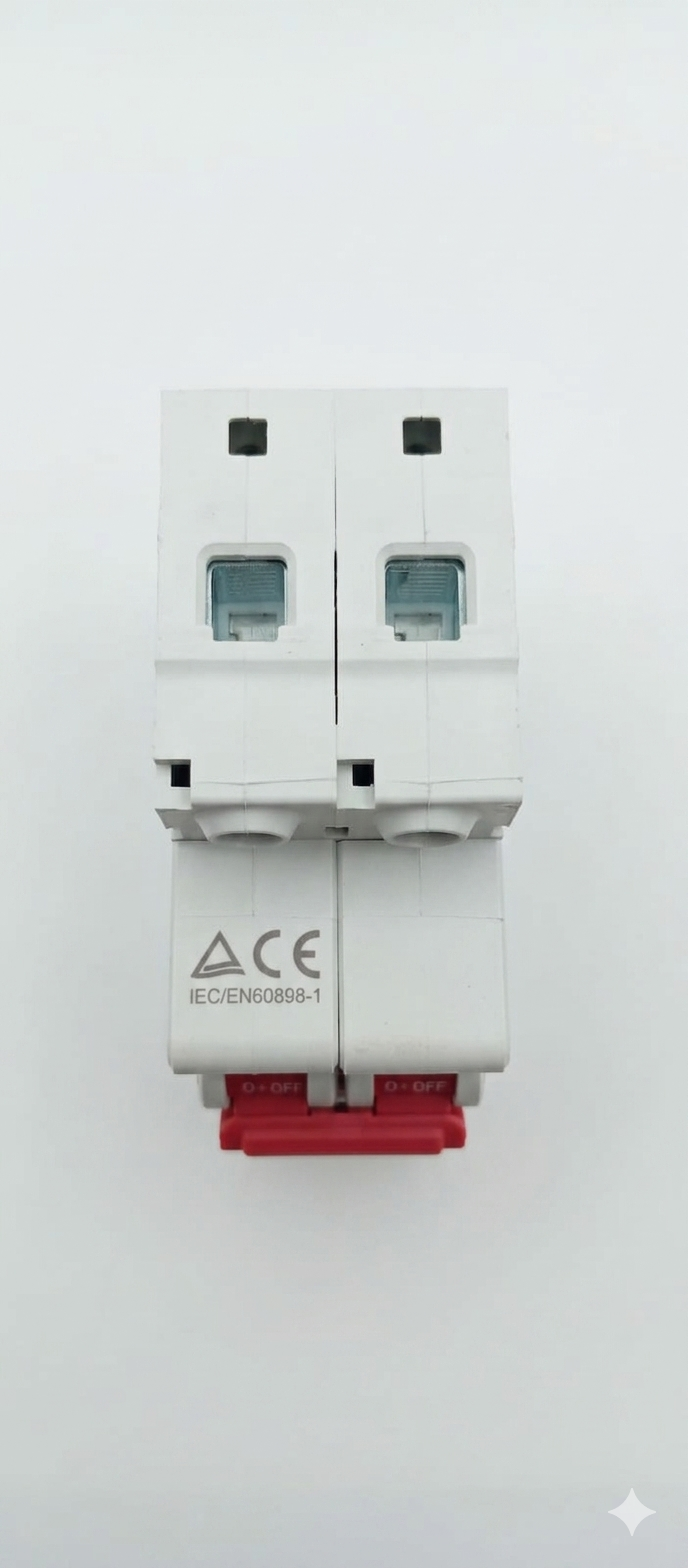

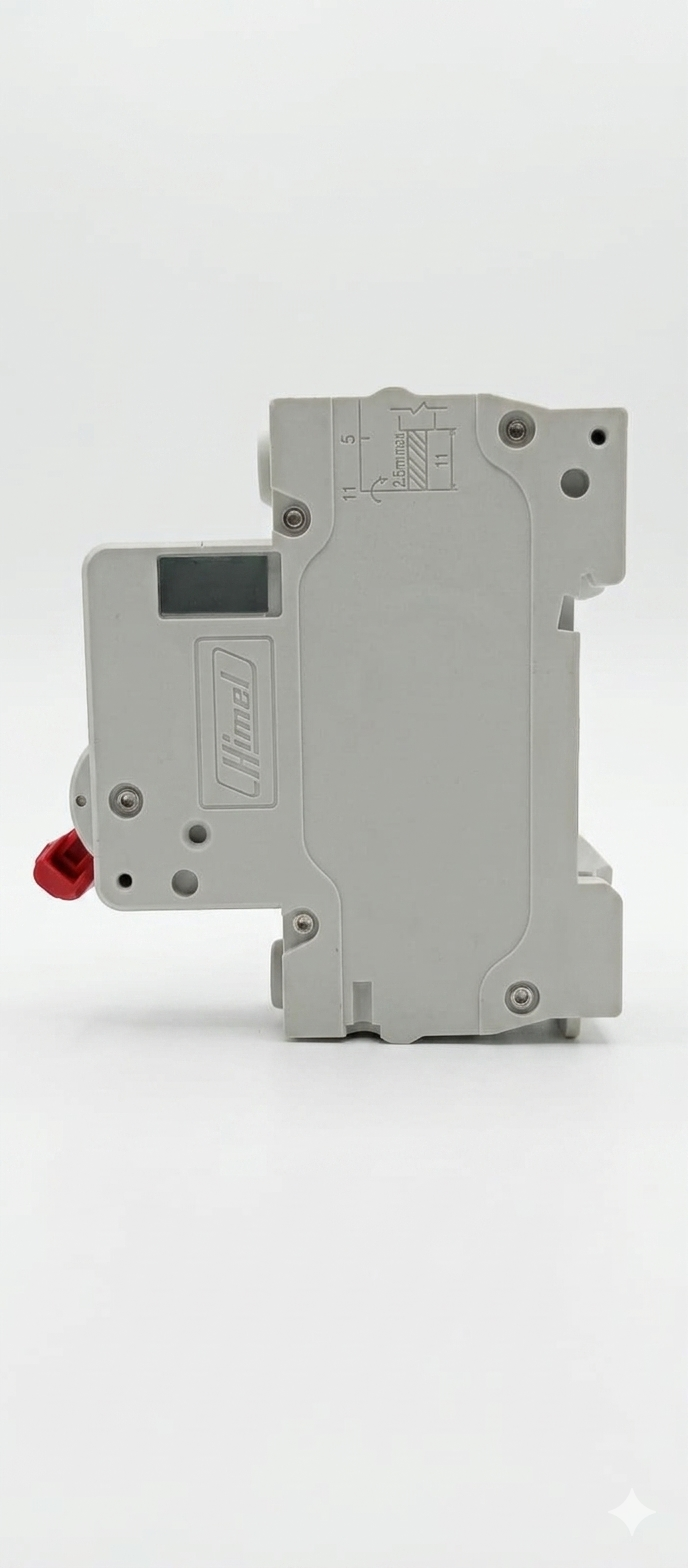

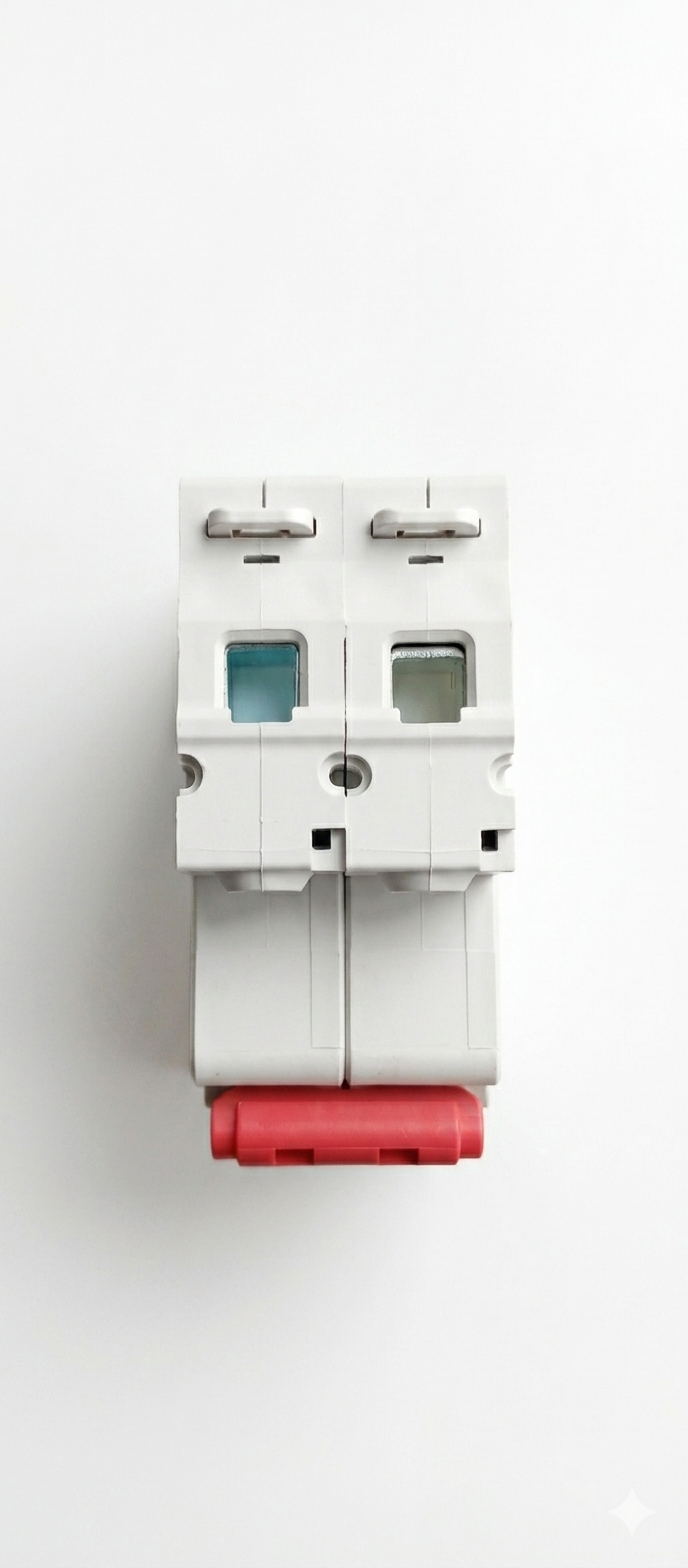

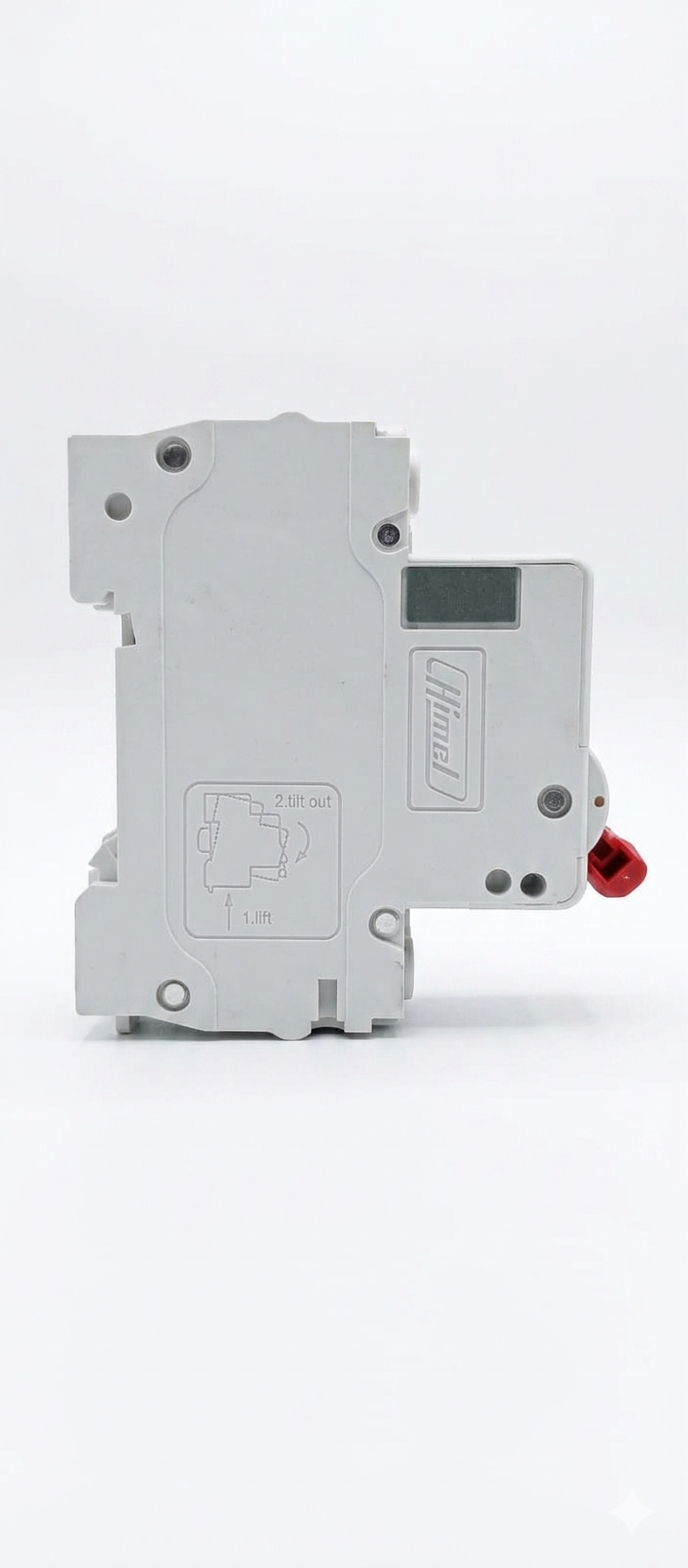

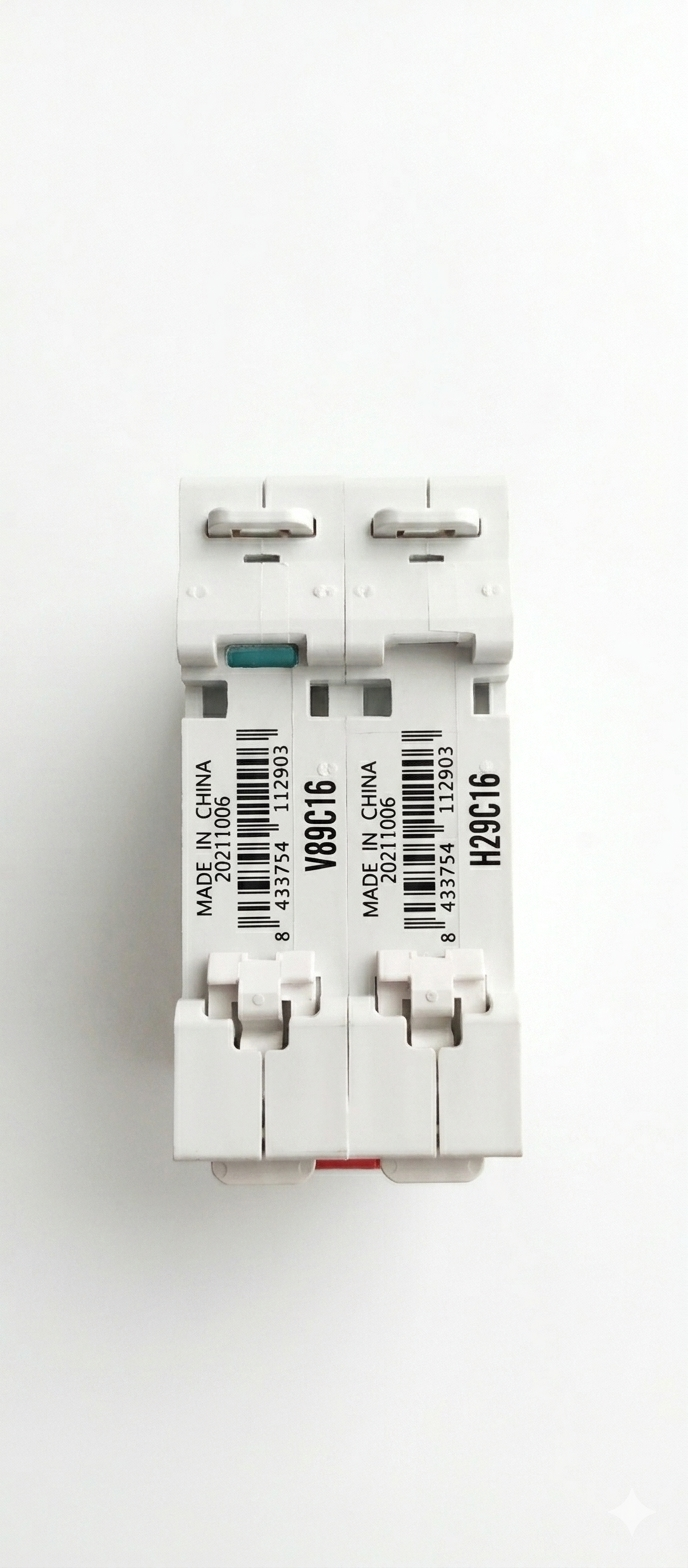

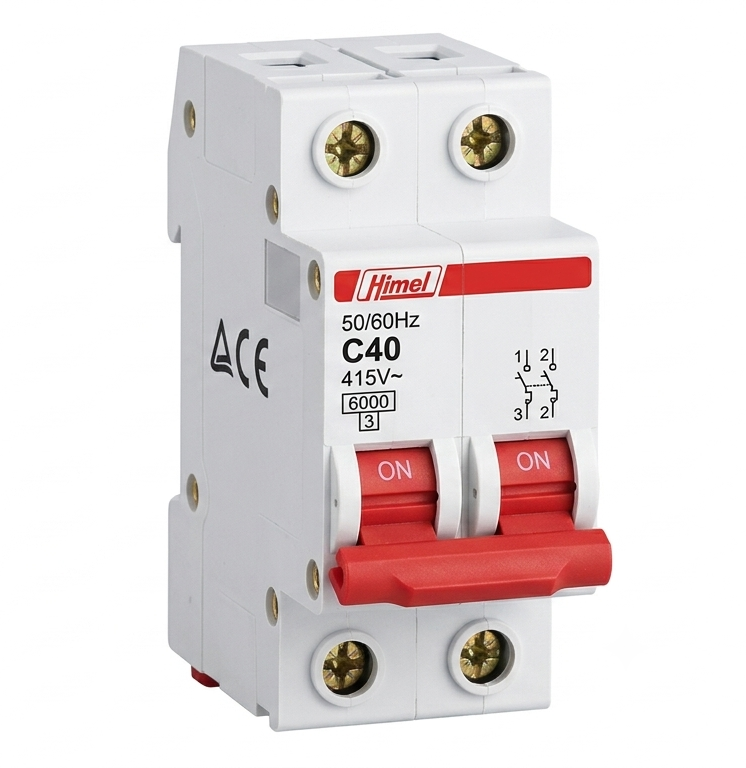

HIMEL HDB3WN2C40 Miniature Circuit Breaker (MCB) 2P 40A 6kA Type C
The HIMEL HDB3WN2C40 Miniature Circuit Breaker (MCB) is engineered to provide dependable protection against overloads and short circuits in low-voltage electrical systems. Designed with a 2 Pole (2P) configuration, a 40A rated current, and a 6kA breaking capacity, it delivers reliable circuit protection for residential, commercial, and industrial applications.
Featuring a Type C tripping curve, thermal-magnetic trip technology, and a compact 35 mm DIN rail mounting design, the HDB3WN2C40 ensures long-lasting performance while complying with the EN/IEC 60898-1 international standard.
HIMEL HDB3WN2C40 Miniature Circuit Breaker (MCB) 2P 40A 6kA Type C Key Features
- 2 Pole (2P) Miniature Circuit Breaker (MCB)
- 40A Rated Current
- 6kA Breaking Capacity
- Type C Tripping Curve
- 415V AC 50/60Hz Rated Voltage
- Thermal-Magnetic Trip Technology
- Overload Protection
- Short Circuit Protection
- 35 mm DIN Rail Mounting
- IP20 Protection Rating
- Mechanical Life: 25,000 Cycles
- Electrical Life: 6,000 Cycles
- Certified to EN/IEC 60898-1
HIMEL HDB3WN2C40 Miniature Circuit Breaker (MCB) 2P 40A 6kA Type C Applications
- Residential Distribution Boards
- Commercial Electrical Installations
- Industrial Control Panels
- Three-Phase Power Distribution
- Lighting Circuits
- Motor Protection Circuits
- Electrical Maintenance Projects
- Low Voltage Protection Systems

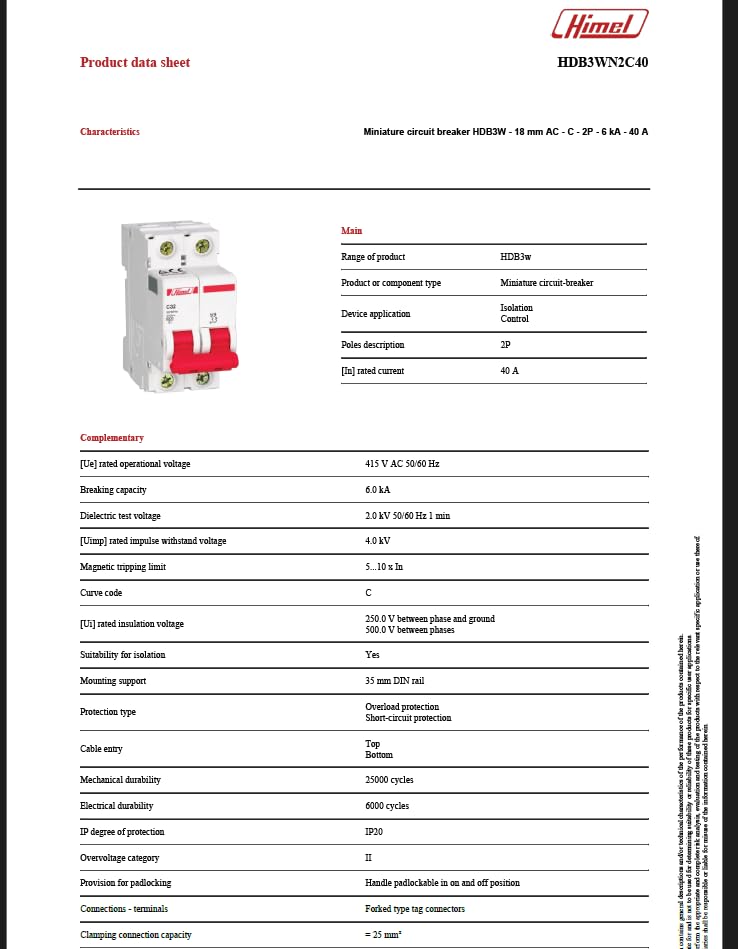

HIMEL HDB3WN2C40 Miniature Circuit Breaker (MCB) 2P 40A 6kA Type C Technical Specifications
| Brand | HIMEL |
| Series | HDB3W |
| Model | HDB3WN2C40 |
| Product Type | Miniature Circuit Breaker (MCB) |
| Pole Configuration | 2 Pole (2P) |
| Rated Current | 40A |
| Rated Voltage | 415V AC 50/60Hz |
| Breaking Capacity | 6kA |
| Tripping Curve | Type C |
| Frequency | 50/60Hz |
| Trip Technology | Thermal-Magnetic |
| Mounting | 35 mm DIN Rail |
| Protection Rating | IP20 |
| Mechanical Durability | 25,000 Cycles |
| Electrical Durability | 6,000 Cycles |
| Standard | EN/IEC 60898-1 |
| Certifications | CE, CB, TÜV |
HIMEL HDB3WN2C40 Miniature Circuit Breaker (MCB) 2P 40A 6kA Type C FAQ
What is the HDB3WN2C40 used for?
It protects electrical circuits against overloads and short circuits in residential, commercial, and industrial electrical installations.
What does the Type C tripping curve mean?
Type C breakers are ideal for circuits with moderate inrush currents such as lighting systems, socket outlets, and small motors.
How is the breaker installed?
The breaker is designed for quick installation on a standard 35 mm DIN rail inside electrical distribution boards and control panels.
Does it comply with international standards?
Yes. The HDB3WN2C40 complies with EN/IEC 60898-1 and is certified by CE, CB, and TÜV.
For complete technical specifications, visit the HIMEL HDB3WN2C40 Official Product Page .
