HIMEL Molded Case Circuit Breaker (MCCB) 3P 50A 35kA Thermal-Magnetic HDM3S160M05031XX

Description

The HIMEL Molded Case Circuit Breaker (MCCB) 3P 50A 35kA Thermal-Magnetic HDM3S160M05031XX is designed to protect low-voltage electrical systems from overloads and short circuits. Its thermal-magnetic trip unit provides dependable protection while maintaining stable operation in industrial and commercial power distribution applications.

HIMEL Molded Case Circuit Breaker (MCCB) 3P 50A 35kA Thermal-Magnetic HDM3S160M05031XX

The HIMEL HDM3S160M05031XX features a rated current of 50A, a 3-pole configuration, and a 35kA breaking capacity at 400V AC. It operates on 400/415V AC networks with a frequency of 50/60Hz, making it suitable for a wide range of low-voltage power distribution systems.

Built with a 160AF frame, this enclosed molded case circuit breaker offers thermal-magnetic protection, 1000V rated insulation voltage, IP20 protection, and compliance with IEC 60947-2. It also supports isolation and delivers reliable protection for electrical equipment and distribution circuits.

The breaker is designed for dependable operation in commercial buildings, industrial facilities, and electrical distribution panels. Its robust construction and high breaking capacity help improve system safety while reducing the risk of equipment damage caused by overloads and short circuits.

With a mechanical durability of 8,500 cycles and an electrical durability of 1,500 cycles, the HDM3S160M05031XX is engineered for long-term performance. It also supports accessories such as shunt trip release, undervoltage release, alarm contacts, motor mechanism, handle, terminal extension, and interphase barriers.

HIMEL Molded Case Circuit Breaker (MCCB) 3P 50A 35kA Thermal-Magnetic HDM3S160M05031XX Key Features

• Brand: HIMEL
• Series: HDM3S
• Model: HDM3S160M05031XX
• Product Type: Enclosed Molded Case Circuit Breaker (MCCB)
• Frame Size: 160AF
• Current Rating: 50A
• Pole Configuration: 3P
• Breaking Capacity: 35kA
• Service Breaking Capacity (Ics): 35kA
• Rated Voltage: 400/415V AC
• Trip Unit Technology: Thermal-Magnetic
• Protection Degree: IP20

HIMEL MCCB 3P 50A HDM3S160M05031XX Applications

• Power distribution panels
• Industrial electrical systems
• Commercial buildings
• Distribution boards
• Control panels
• Low-voltage AC networks
• Electrical equipment protection
• General power distribution applications

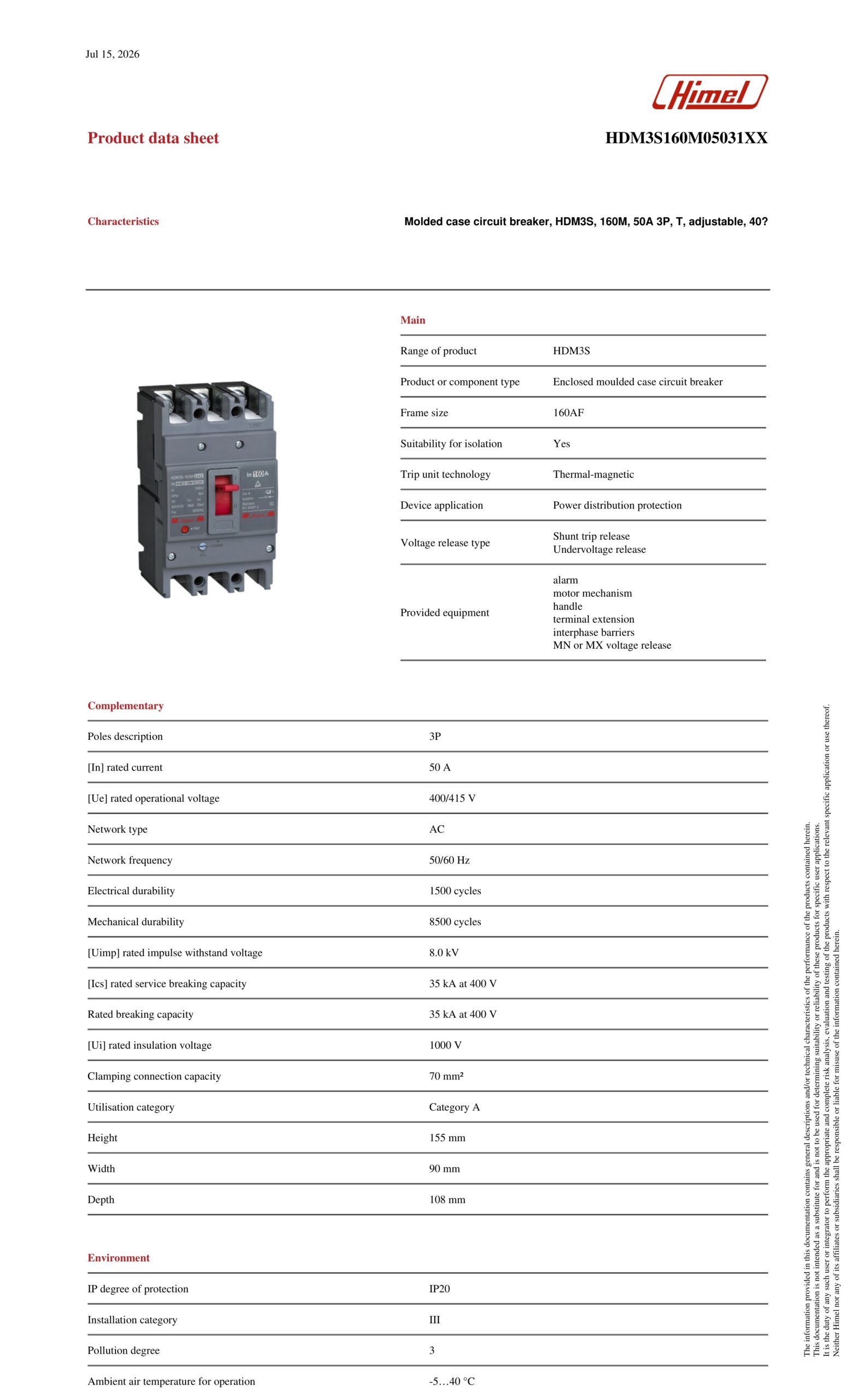

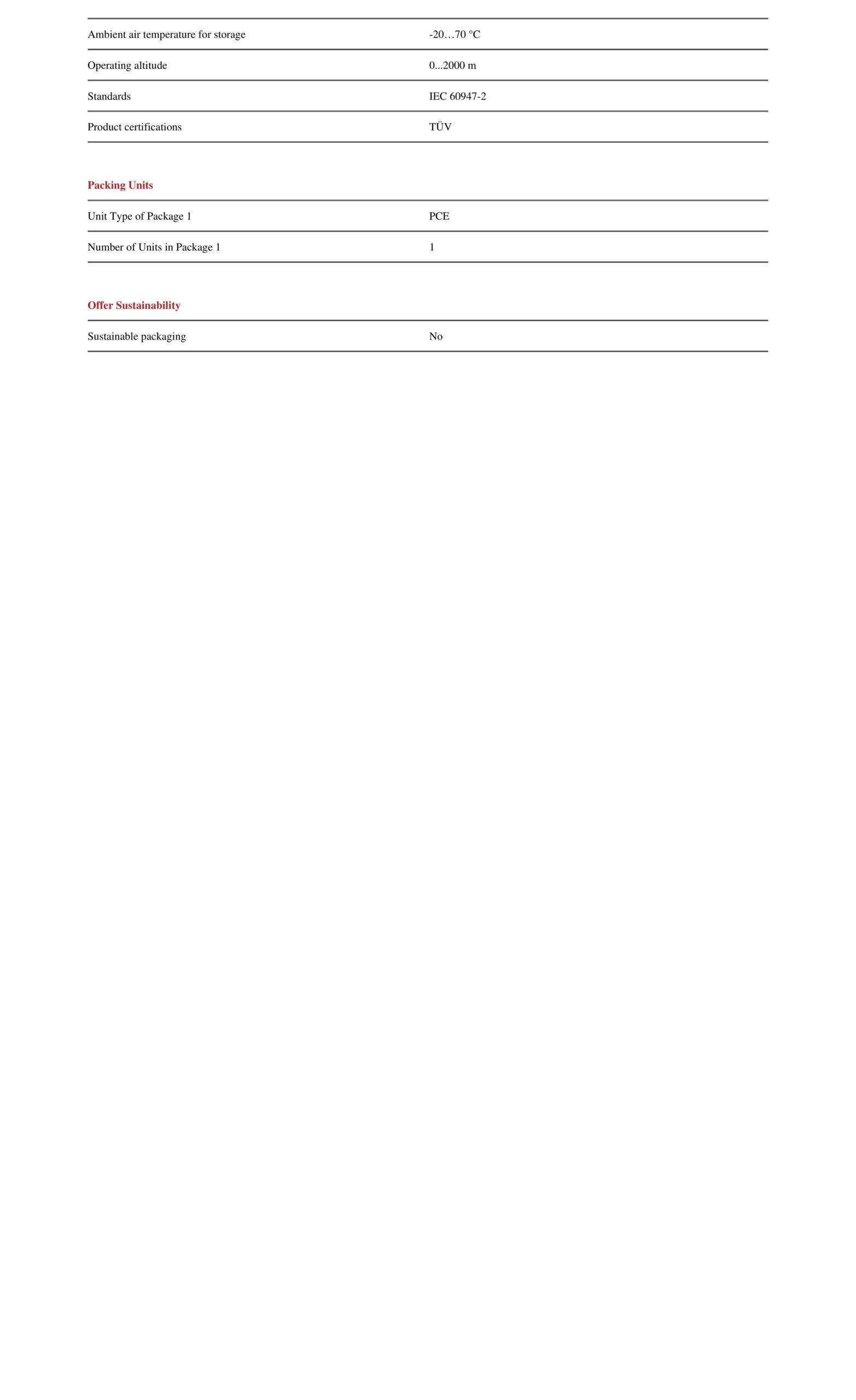

HIMEL MCCB 3P 50A 35kA HDM3S160M05031XX Technical Specifications
