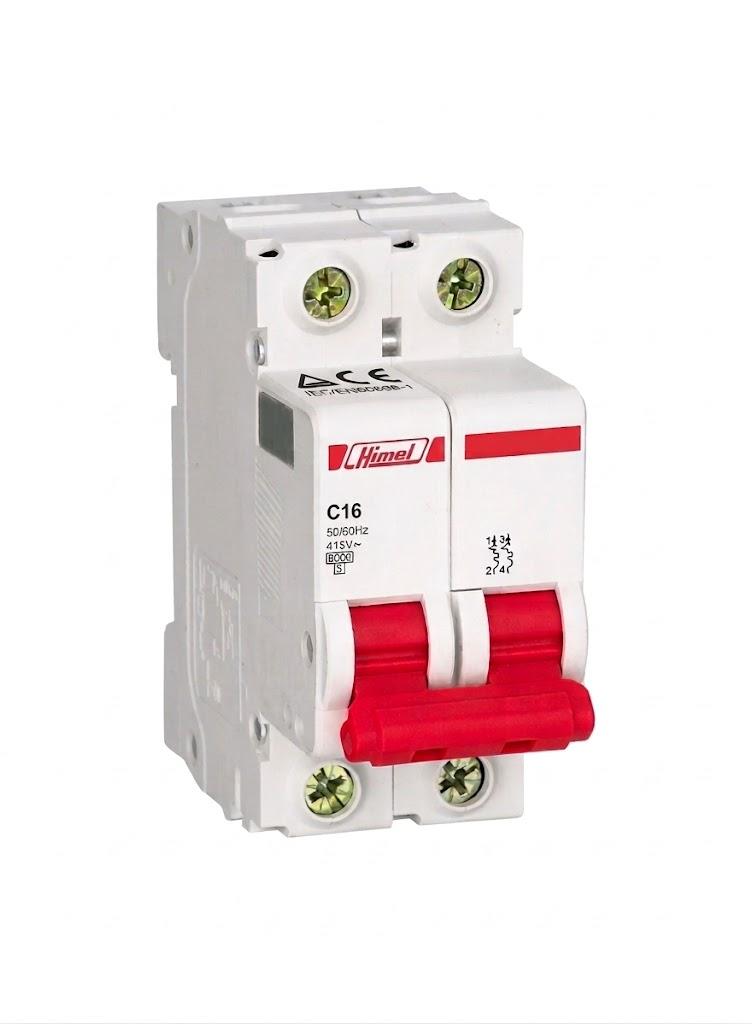

HIMEL 2P 16A 6kA MCB

Description

HIMEL 2P 16A 6kA MCB

The HIMEL 2P 16A 6kA MCB is designed to protect low-voltage electrical systems from overloads and short circuits. Ideal for residential, commercial, and industrial installations, it delivers reliable circuit protection, long-lasting performance, and easy DIN rail installation. Built according to the EN/IEC 60898-1 standard, the HDB3WN2C16 combines thermal-magnetic protection, a Type C tripping curve, and compact DIN rail mounting. Its robust construction ensures dependable performance while providing safe and efficient circuit protection. The HDB3WN2C16 is ideal for protecting lighting circuits, electrical panels, power distribution systems, motor control circuits, and general low-voltage installations against overloads and short-circuit faults while maintaining dependable electrical safety.

Key Features

• 2 Pole (2P) Configuration
• 16A Rated Current
• 6kA Breaking Capacity
• Type C Tripping Curve
• Thermal-Magnetic Protection
• Overload & Short-Circuit Protection
• 35 mm DIN Rail Mounting

Applications

• Residential Distribution Boards
• Commercial Electrical Installations
• Industrial Control Panels
• Lighting Circuits
• Power Distribution Systems
• Motor Control Circuits
• Low Voltage Protection Systems

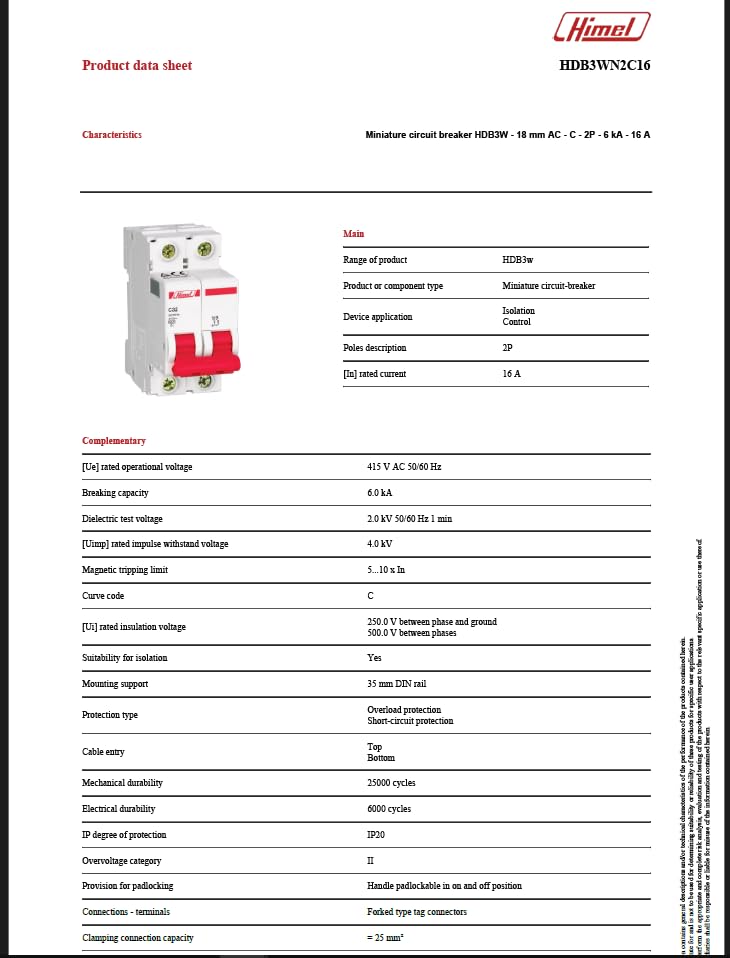

Technical Specifications

Brand	HIMEL
Series	HDB3W
Model	HDB3WN2C16
Product Type	Miniature Circuit Breaker (MCB)
Poles	2 Pole (2P)
Rated Current	16A
Breaking Capacity	6kA
Tripping Curve	Type C
Rated Voltage	415V AC
Frequency	50/60Hz
Trip Technology	Thermal-Magnetic
Mounting	35 mm DIN Rail
Protection Rating	IP20
Standard	EN/IEC 60898-1
Certifications	CE, CB, TÜV

For complete technical specifications, visit the HIMEL HDB3WN2C16 Official Product Page .
