HIMEL Miniature Circuit Breaker (MCB) 2P 20A 10kA Type C – HDB9H63A2C20

Description

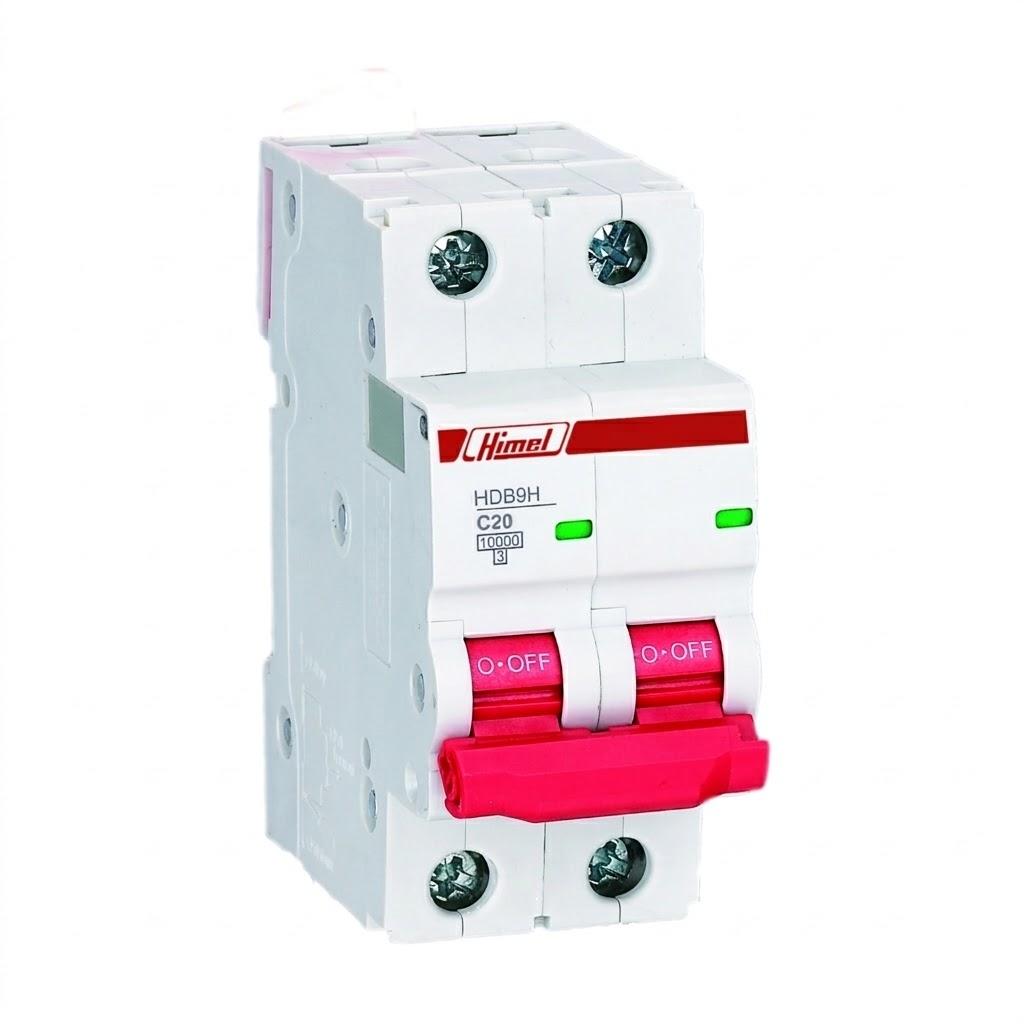

HIMEL HDB9H63A2C20 Miniature Circuit Breaker (MCB) 2P 20A 10kA Type C

The HIMEL HDB9H63A2C20 Miniature Circuit Breaker (MCB) is designed to provide dependable protection against overloads and short circuits in low-voltage electrical systems. Featuring a 2 Pole (2P) configuration, a 20A rated current, and a 10kA breaking capacity, it delivers reliable circuit protection for residential, commercial, and industrial applications. Equipped with a Type C tripping curve, high-performance thermal-magnetic protection, and a compact DIN rail mounting design, the HDB9H63A2C20 ensures long-lasting electrical safety while complying with the EN/IEC 60898-1 international standard.

HIMEL HDB9H63A2C20 Miniature Circuit Breaker (MCB) 2P 20A 10kA Type C Key Features

• 2 Pole (2P) Miniature Circuit Breaker (MCB)
• 20A Rated Current
• 10kA Breaking Capacity
• Type C Tripping Curve
• 230V AC Rated Voltage
• Thermal-Magnetic Protection
• Overload Protection
• Short Circuit Protection
• 35 mm DIN Rail Mounting
• Mechanical Life: 20,000 Cycles
• Electrical Life: 10,000 Cycles
• Certified to EN/IEC 60898-1

HIMEL HDB9H63A2C20 Miniature Circuit Breaker (MCB) 2P 20A 10kA Type C Applications

• Residential Distribution Boards
• Commercial Electrical Installations
• Industrial Control Panels
• Power Distribution Systems
• Lighting Circuits
• Socket Outlet Protection
• Equipment Protection
• Low Voltage Electrical Systems

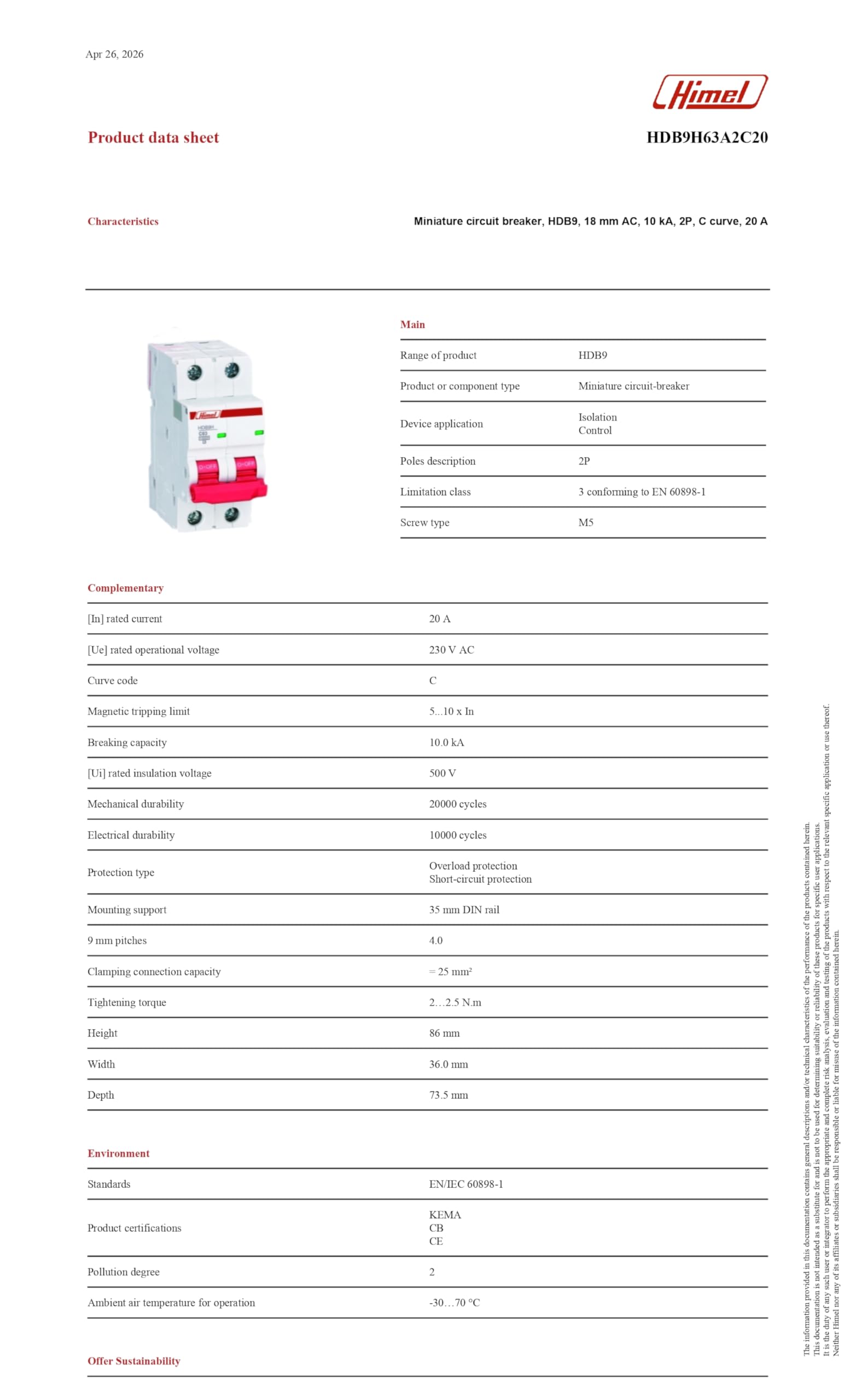

HIMEL HDB9H63A2C20 Miniature Circuit Breaker (MCB) 2P 20A 10kA Type C Technical Specifications

Brand	HIMEL
Series	HDB9
Model	HDB9H63A2C20
Product Type	Miniature Circuit Breaker (MCB)
Pole Configuration	2 Pole (2P)
Rated Current	20A
Rated Voltage	230V AC
Breaking Capacity	10kA
Tripping Curve	Type C
Frequency	50/60Hz
Mounting	35 mm DIN Rail
Mechanical Durability	20,000 Cycles
Electrical Durability	10,000 Cycles
Insulation Voltage	500V
Standard	EN/IEC 60898-1
Certifications	KEMA, CB, CE

HIMEL HDB9H63A2C20 Miniature Circuit Breaker (MCB) 2P 20A 10kA Type C FAQ

What is the HDB9H63A2C20 used for? It protects electrical circuits against overloads and short circuits in residential, commercial, and industrial electrical systems. What does the Type C tripping curve mean? Type C breakers are suitable for circuits with moderate inrush currents such as lighting, socket outlets, and small motors. How is the breaker installed? The breaker mounts easily onto a standard 35 mm DIN rail inside electrical distribution boards. Does it comply with international standards? Yes. The HDB9H63A2C20 complies with EN/IEC 60898-1 and is certified by CE, CB, and KEMA. For complete technical specifications, visit the HIMEL HDB9H63A2C20 Official Product Page .
